spring 환경설정

spring project 생성

File 메뉴 -> new 메뉴 -> Spring Legacy Project 메뉴 실행

pom.xml
version 변경
java version 1.8 -> 11
org.springframework-version 3.1.1.RELEASE -> 5.3.16
log4j version 1.2.15 -> 1.2.17 junit version 4.7 -> 4.12

dependency 추가:
spring-test
lombok
jackson
dbcp, mybatis, ojdbc8, spring-jdbc aspectjweaver fileupload (option) tiles(option)

     <!-- spring-test -->
     <dependency>
         <groupId>org.springframework</groupId>
         <artifactId>spring-test</artifactId>
         <version>${org.springframework-version}</version>
     </dependency>
     <!-- lombok -->
     <dependency>
         <groupId>org.projectlombok</groupId>
         <artifactId>lombok</artifactId>
         <version>1.18.24</version>
         <scope>provided</scope>
     </dependency>
     <!-- jackson-databind -->
     <dependency>
         <groupId>com.fasterxml.jackson.core</groupId>
         <artifactId>jackson-databind</artifactId>
         <version>2.13.2.2</version>
     </dependency>

     <!-- commons-dbcp2 -->
     <dependency>
         <groupId>org.apache.commons</groupId>
         <artifactId>commons-dbcp2</artifactId>
         <version>2.9.0</version>
     </dependency>
     <!-- spring-jdbc -->
     <dependency>
         <groupId>org.springframework</groupId>
         <artifactId>spring-jdbc</artifactId>
         <version>${org.springframework-version}</version>
     </dependency>
     <!-- ojdbc8 -->
     <dependency>
         <groupId>com.oracle.database.jdbc</groupId>
         <artifactId>ojdbc8</artifactId>
         <version>19.3.0.0</version>
     </dependency>
     <!-- mybatis -->
     <dependency>
         <groupId>org.mybatis</groupId>
         <artifactId>mybatis</artifactId>
         <version>3.5.9</version>
     </dependency>
     <!-- mybatis-spring -->
     <dependency>
         <groupId>org.mybatis</groupId>
         <artifactId>mybatis-spring</artifactId>
         <version>2.0.6</version>
     </dependency>

mybatis 설정
- datasource-context.xml
  datasource : connection pool 설정
- global.properties
- mybatis-context.xml
- mybatis-config.xml
  - callSettersOnNulls : 결과값이 null이어도 map에 put해줌
  - mapUnderscoreToCalmeSCase : 카멜케이스로 변환
  - jdbcTypeForNull : 파라미터가 null

<settings>
  <setting name="callSettersOnNulls" value="true"/>
<Settings>

web.xml 변경
- web-app dtd 2.5에서 4.0으로 변경

<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd" version="4.0">

context-param contextConfigLocation 수정 : /WEB-INF/config/root-context.xml

    <context-param>
   <param-name>contextConfigLocation</param-name>
   <param-value>classpath:/spring/*-context.xml</param-value>
    </context-param>

encodingFilter 추가

log4j.xml 파일 수정
- log4j.dtd 경로 변경

     <!DOCTYPE log4j:configuration PUBLIC "-//APACHE//DTD LOG4J 1.2//EN" "log4j.dtd">

 "log4j.dtd"  =>  http://logging.apache.org/log4j/1.2/apidocs/org/apache/log4j/xml/doc-files/log4j.dtd

junit 라이브러리 추가 Properties -> Java build path 설정 페이지 -> Libraries 탭 -> Add library 버튼 -> junit 선택 -> version 4 선택

jdbc로그 설정

slf4j <- 인터페이스

로그구현체 commom-log , log4j, logback

pom.xml

log4jdbc 의존성 추가

     <!-- log4jdbc -->
     <dependency>
         <groupId>org.bgee.log4jdbc-log4j2</groupId>
         <artifactId>log4jdbc-log4j2-jdbc4.1</artifactId>
         <version>1.16</version>
     </dependency>

log4j 버전을 1.2.15 에서 1.2.17.로 변경
@Log4j는 log 객체를 생성하여 로그를 출력할 수 있게 하는 어노테이션을 사용하려면 runtime scope는 삭제함

		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>1.2.17</version>

~~<scope>runtime</scope>~~

global.properties

jdbc.driver = net.sf.log4jdbc.sql.jdbcapi.DriverSpy
jdbc.url = jdbc:log4jdbc:oracle:thin:@localhost:1521:xe
jdbc.username = hr
jdbc.password = hr

log4j.xml 파일 설정
- logger 추가
```javascript
```

src/main/resources/log4jdbc.log4j2.properties 파일 생성

log4jdbc.spylogdelegator.name= net.sf.log4jdbc.log.slf4j.Slf4jSpyLogDelegator

트랜잭션

jdbc 트랜잭션 처리

try{
      conn = db.connect();
      conn.setAutoCommit(false);

      String sql1 = "UPDATE table1 SET data1 = ? WHERE data1 = 100";
      String sql2 = "UPDATE table2 SET data1 = ? WHERE data1 = 200";

      pstmt1 = conn.prepareStatement(sql1);
      pstmt1.setInt(1,a);
      pstmt1.executeUpdate();

      pstmt2 = conn.prepareStatement(sql2);
      pstmt2.setInt(1,a);
      pstmt2.executeUpdate();
      conn.commit();

} catch (Exception se) {
      conn.rollback();
      se.printStackTrace();
} finally {
      db.close(conn);
}

spring 트랜잭션 설정

    <!-- transactionManager 빈 등록  -->
 <bean id="transactionManager"
       class="org.springframework.jdbc.datasource.DataSourceTransactionManager" >
     <property name="dataSource" ref="dataSource"></property>
 </bean>

 <!-- @Transactional 애노테이션 스캔-->
 <tx:annotation-driven/>

    <!-- <aop:aspectj-autoproxy proxy-target-class="true"/> -->

service 클래스에 어노테이션 설정

@Service
public class OrdServiceImpl implements OrdService {

	@Autowired OrdDtlMapper ordDtlMapper;
	@Autowired OrdMapper ordMapper;

	@Override
	@Transactional
	public int insert(String data) {
		int r = ordMapper.insert(data);
		ordDtlMapper.insert(data);
		return r;
	}
}

aop 설정 : 모든 서비스 메서드에 자동으로 트랜잭션 설정

 <!-- Transaction Advice 설정 -->
 <tx:advice id="txAdvice" transaction-manager="transactionManager">
     <tx:attributes>
         <tx:method name="find*" read-only="true" />
         <tx:method name="*"/>
     </tx:attributes>
 </tx:advice>

 <!-- Transaction AOP 설정 -->
 <aop:config>
     <aop:pointcut expression="execution(* com.yedam.app..*ServiceImpl.*(..))" id="txPointCut"/>
     <aop:advisor advice-ref="txAdvice" pointcut-ref="txPointCut"/>
 </aop:config>

TestCase로 Service 계층을 테스트 하면 정상적으로 트랜잭션 처리되나 Controller를 호출하면 트랜잭션 처리가 안되는 경우 조치방법 에러메시지 : JDBC Connection will not be managed by Spring
조치방법 : servlet-context.xml 에서 Controller 이 아닌 Annotation들을 exclude-filter 처리함

 <context:component-scan base-package="com.yedam.app" >
     <context:include-filter type="annotation" expression="org.springframework.stereotype.Controller"/>
     <context:include-filter type="annotation" expression="org.springframework.web.bind.annotation.ControllerAdvice"/>
     <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Service"/>
     <context:exclude-filter type="annotation" expression="org.springframework.stereotype.Repository"/>
 </context:component-scan>

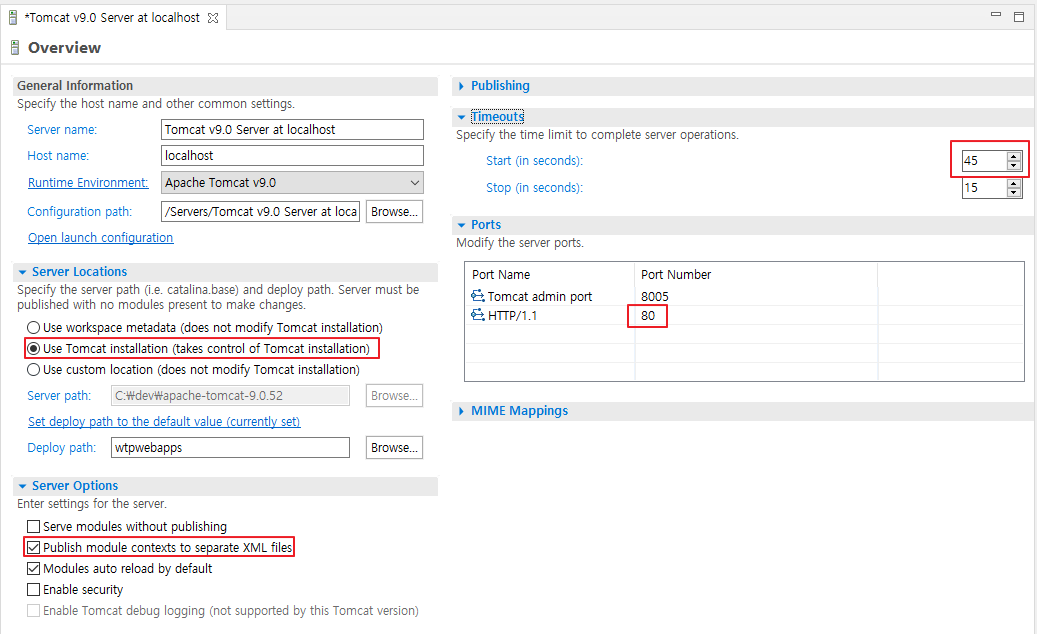

tomcat 설정

C:\dev\apache-tomcat-9.0.50\wtpwebapps\prjt
C:\dev\workspace.metadata.plugins\org.eclipse.wst.server.core\tmp0\wtpwebapps\prjt 톰캣설정
